Actor > Shapes

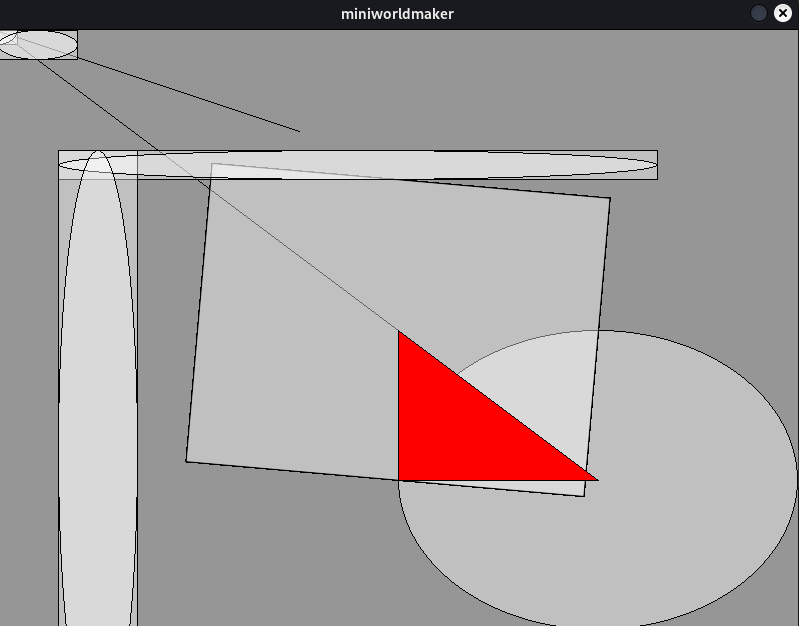

Shape actors are drawable actors with geometry-focused APIs.

API Reference

Shape

Base class for shape actors.

class miniworlds.actors.shapes.shapes.Shape(position=(0, 0), *args, **kwargs)

Base class for geometric actors.

Shapes share the common actor appearance properties border, is_filled, fill_color, and border_color.

Examples

shape.fill_color = (255, 0, 0)
shape.border = 2

get_costume_class()

Return type:

ShapeCostume

new_costume()

Create and attach a new empty costume to this actor.

Return type:

ShapeCostume

Point

class miniworlds.actors.shapes.shapes.Point(position)

Circle with radius 1.

Parameters:

position – Point position as (x, y).

Examples

point = Point((10, 10))

__init__(position)

Create a point at a position.

Circle

class miniworlds.actors.shapes.shapes.Circle(position=(0.0, 0.0), radius=10.0, *args, **kwargs)

Circular shape.

Parameters:

• position – Center position as (x, y).

• radius – Circle radius in pixels.

Examples

circle = Circle((200, 100), 20)
circle.fill_color = (255, 0, 0)

circle = Circle.from_topleft((100, 100), 50)

__init__(position=(0.0, 0.0), radius=10.0, *args, **kwargs)

Create a circle.

Parameters:

• position – Center position as (x, y).

• radius – Circle radius in pixels.

classmethod from_center(position, radius, **kwargs)

Create a circle positioned by its center.

Parameters:

• position – Center position as (x, y).

• radius – Circle radius in pixels.

Returns:

The created circle.

classmethod from_topleft(position, radius, **kwargs)

Create a circle positioned by its top-left corner.

Parameters:

• position – Top-left position as (x, y).

• radius – Circle radius in pixels.

Returns:

The created circle.

get_costume_class()

Return type:

type[costume_mod.Costume]

new_costume()

Create and attach a new empty costume to this actor.

property radius

Circle radius in pixels.

Examples

circle.radius = 30

Type:

float

Ellipse

class miniworlds.actors.shapes.shapes.Ellipse(position=(0, 0), width=10, height=10, *args, **kwargs)

Elliptic shape.

Parameters:

• position – Top-left position as (x, y).

• width – Ellipse width in pixels.

• height – Ellipse height in pixels.

Examples

ellipse = Ellipse((200, 100), 20, 30)
ellipse = Ellipse.from_center((100, 100), 10, 10)

check_arguments(position, width, height)

Validate constructor arguments for Ellipse.

Parameters:

• position – Position as (x, y).

• width – Ellipse width in pixels.

• height – Ellipse height in pixels.

Raises:

EllipseWrongArgumentsError – If position is not a tuple.

classmethod from_center(position, width, height, **kwargs)

Create an ellipse positioned by its center.

classmethod from_topleft(position, width, height, **kwargs)

Create an ellipse positioned by its top-left corner.

get_costume_class()

Return type:

type[costume_mod.Costume]

new_costume()

Create and attach a new empty costume to this actor.

Line

class miniworlds.actors.shapes.shapes.Line(start_position, end_position, *args, **kwargs)

Line shape between two positions.

Parameters:

• start_position – Start position as (x, y).

• end_position – End position as (x, y).

Examples

line = Line((200, 100), (400, 100))
line.border = 2

property border

Line thickness in pixels.

Type:

float

property direction

Actor direction in Miniworlds/Scratch convention.

Common values are 0 or “up”, 90 or “right”, -90 or “left”, and 180 or “down”.

Examples

@player.register
def on_key_down(self, key):
    if "left" in key:
        self.direction = "left"
    elif "right" in key:
        self.direction = "right"
    self.move()

actor.direction = 45
actor.move()

Type:

int

property end

End point as (x, y).

Type:

tuple[float, float]

property end_position

End point as (x, y).

Type:

tuple[float, float]

get_bounding_box()

Return the rectangular bounding box that contains the line.

Returns:

Bounding rectangle including line thickness.

get_costume_class()

Return type:

type[costume_mod.Costume]

property length

Current line length in pixels.

Type:

float

property line_width

Line thickness in pixels.

Type:

float

new_costume()

Create and attach a new empty costume to this actor.

property start

Start point as (x, y).

Type:

tuple[float, float]

property start_position

Start point as (x, y).

Type:

tuple[float, float]

property thickness

Line thickness in pixels.

Type:

float

Rectangle

class miniworlds.actors.shapes.shapes.Rectangle(position=(0, 0), width=10, height=10, *args, **kwargs)

Rectangular shape.

Parameters:

• position – Top-left position as (x, y).

• width – Rectangle width in pixels.

• height – Rectangle height in pixels.

Examples

rectangle = Rectangle((200, 100), 20, 10)

classmethod from_center(position, width, height)

Create a rectangle positioned by its center.

classmethod from_topleft(position, width, height)

Create a rectangle positioned by its top-left corner.

get_costume_class()

Return type:

type[costume_mod.Costume]

new_costume()

Create and attach a new empty costume to this actor.

Polygon

class miniworlds.actors.shapes.shapes.Polygon(position: Tuple[float, float] | None = (0, 0), *args, **kwargs)

Polygon shape.

Parameters:

pointlist – List of corner points.

Examples

polygon = Polygon([(200, 100), (400, 100), (0, 0)])
polygon.fill_color = (255, 0, 0)

property pointlist

Polygon corner points.

Type:

list[tuple[float, float]]

Triangle

class miniworlds.actors.shapes.shapes.Triangle(p1, p2, p3, *args, **kwargs)

A triangle shape defined by three corner points.

Parameters:

• p1 – First corner as (x, y).

• p2 – Second corner as (x, y).

• p3 – Third corner as (x, y).

Examples

triangle = Triangle((100, 50), (50, 150), (150, 150))
triangle.fill_color = (255, 165, 0)

Arc

class miniworlds.actors.shapes.shapes.Arc(position=(0, 0), width=10, height=10, start_angle=0, end_angle=0, *args, **kwargs)

Elliptic arc shape.

Parameters:

• position – Top-left position as (x, y).

• width – Arc width in pixels.

• height – Arc height in pixels.

• start_angle – Start angle in degrees.

• end_angle – End angle in degrees.

Examples

arc = Arc((20, 20), 100, 60, 0, 180)

property end_angle

End angle in degrees.

Type:

float

classmethod from_center(position, width, height, start_angle=0, end_angle=360, **kwargs)

Create an arc positioned by its center.

property start_angle

Start angle in degrees.

Type:

float
